Marsh WellWater: Avon economical, efficient and fully accredited pump chamber
Price range: £450.00 through £2,400.00
Size – Ø1500mm> | Sump Capacity – 234 Litres
To meet the needs of contractors, builders and ground workers who prefer to shop online, Marsh Industries has designed a range of high performance pump chamber solutions that are cost-effective and accredited to British Standards and European Norm’s; BSEN12050 for structural strength and water-tightness as well as BSEN752 to comply with hydrostatic and electrical requirements, and BSEN752-6 for drain and sewer systems in outside buildings.
This unique range ensures that there is no risk in product quality and selection, allowing specifiers and end-users to buy online with confidence in the knowledge that the Marsh Wellwater: Avon provides guaranteed performance with industry compliance.
Resources
Description
Why specify a Marsh WellWater pump station?
- When discharge to mains sewer is required, but to do so by gravity is impractical, a Marsh WellWater pump chamber will be needed
- Designed to BSEN12050, BSEN752 and BSEN752-6
- Smooth internal walls improves pump efficiency and eliminates ‘dead spots’ which can lead to odours and septicity
- Variable invert depths and orientations to suit individual site conditions (available on request)
- Pre-assembled pipework for fully automatic operation
Market-leading pump systems
Marsh uses market-leading submersible pumps throughout its WellWater range of pump chambers to ensure maximum reliability and efficiency with minimal clogging or wear.
Applications
The Marsh WellWater range of pump stations is suitable for water and wastewater treatment, effluent and sewage discharge in domestic, commercial and industrial sites:
• Agricultural water and wastewater
• Biofuel systems
• Commercial buildings
• Domestic buildings
• Food processing
• Industrial boilers
• Industrial wastewater
• Industrial water treatment
• Marine
• Mining
• Pharmaceuticals
• Wastewater transport
• Wastewater treatment
• Water distribution
• Water intake
• Water treatment
General guidance
Where foul water drainage from a domestic property is to be pumped to mains the effluent receiving chamber should be sized to contain 24-hour inflow to allow for disruption in service, the minimum daily discharge being taken as 150 litres per person per day.
For other building types, the capacity of the receiving chamber should be based on the calculated daily demand of the water intake for the building, or when only a proportion of the foul sewage is to be pumped then the capacity should be based pro-rata.
If the sewer is to be ‘adopted’ by a local water authority, please contact Marsh Industries as Sewers for Adoption (SFA) specification and additional local authority related criteria might apply.

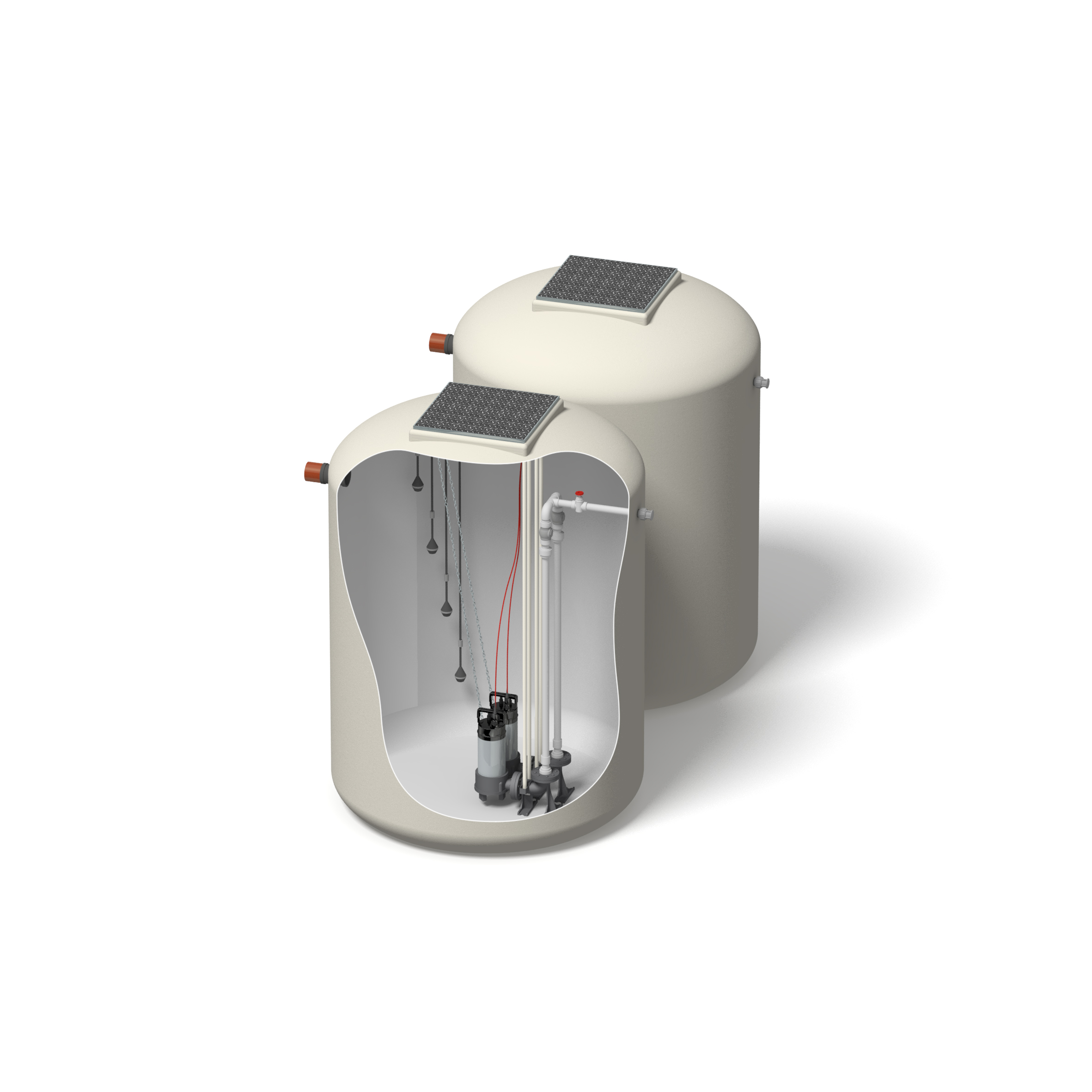

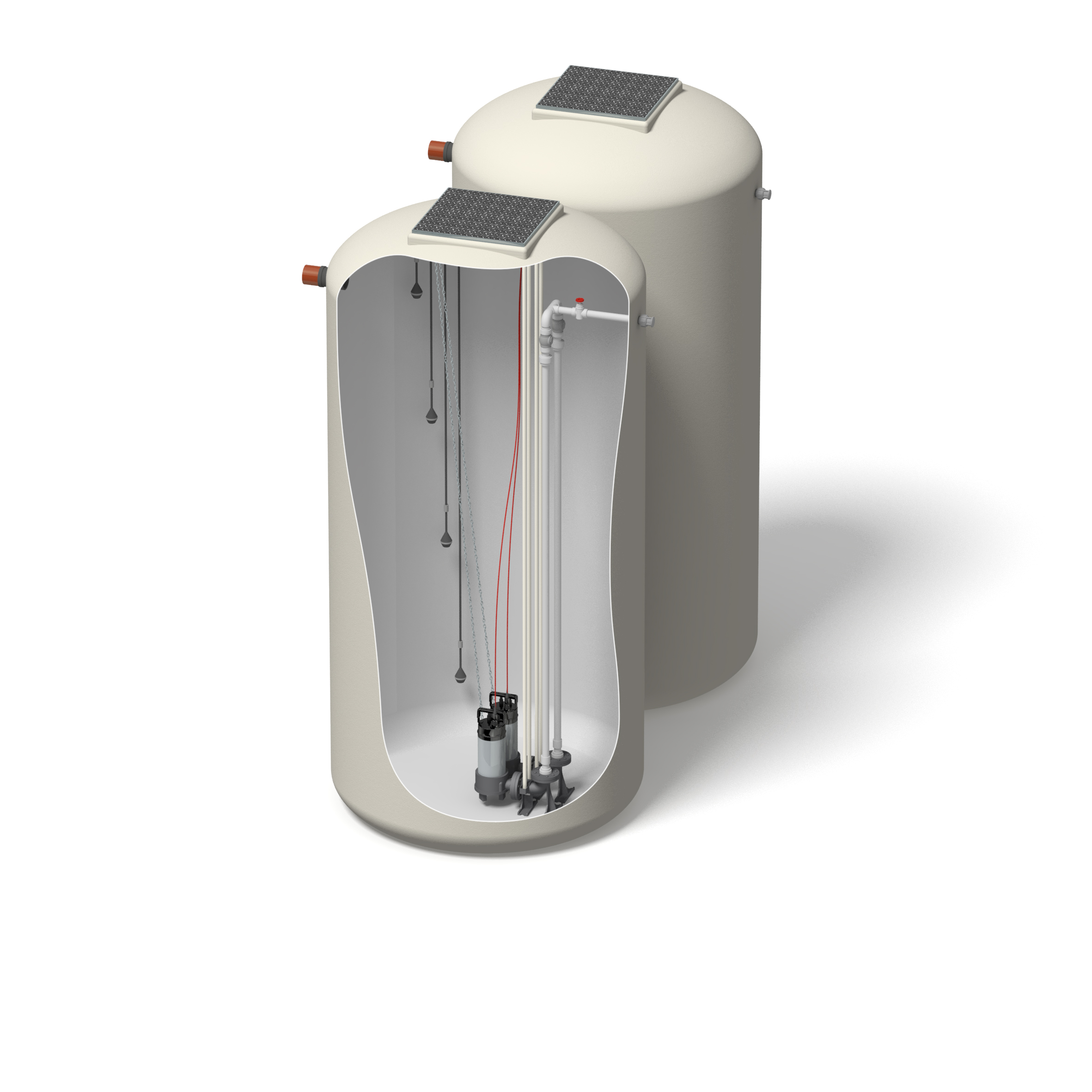

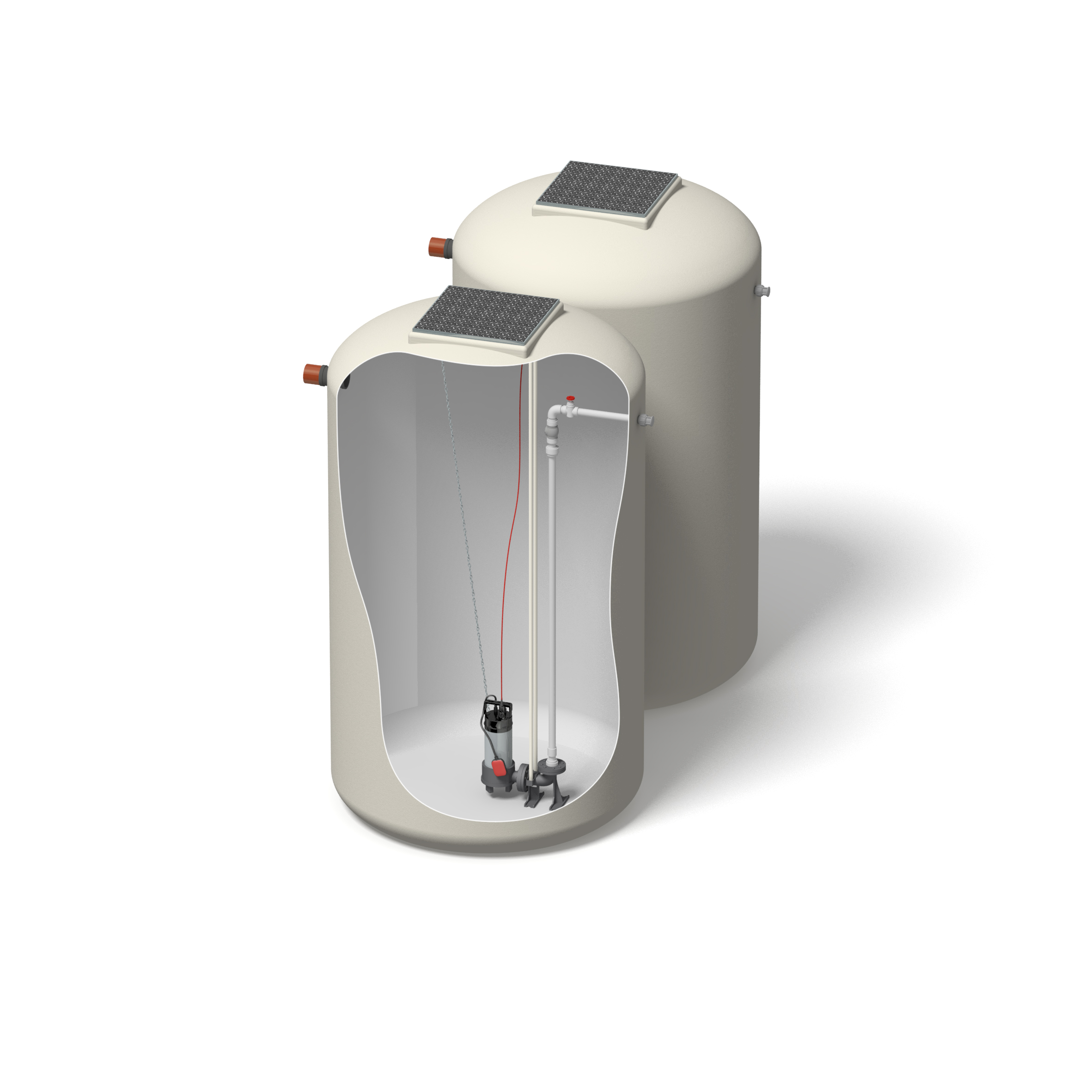

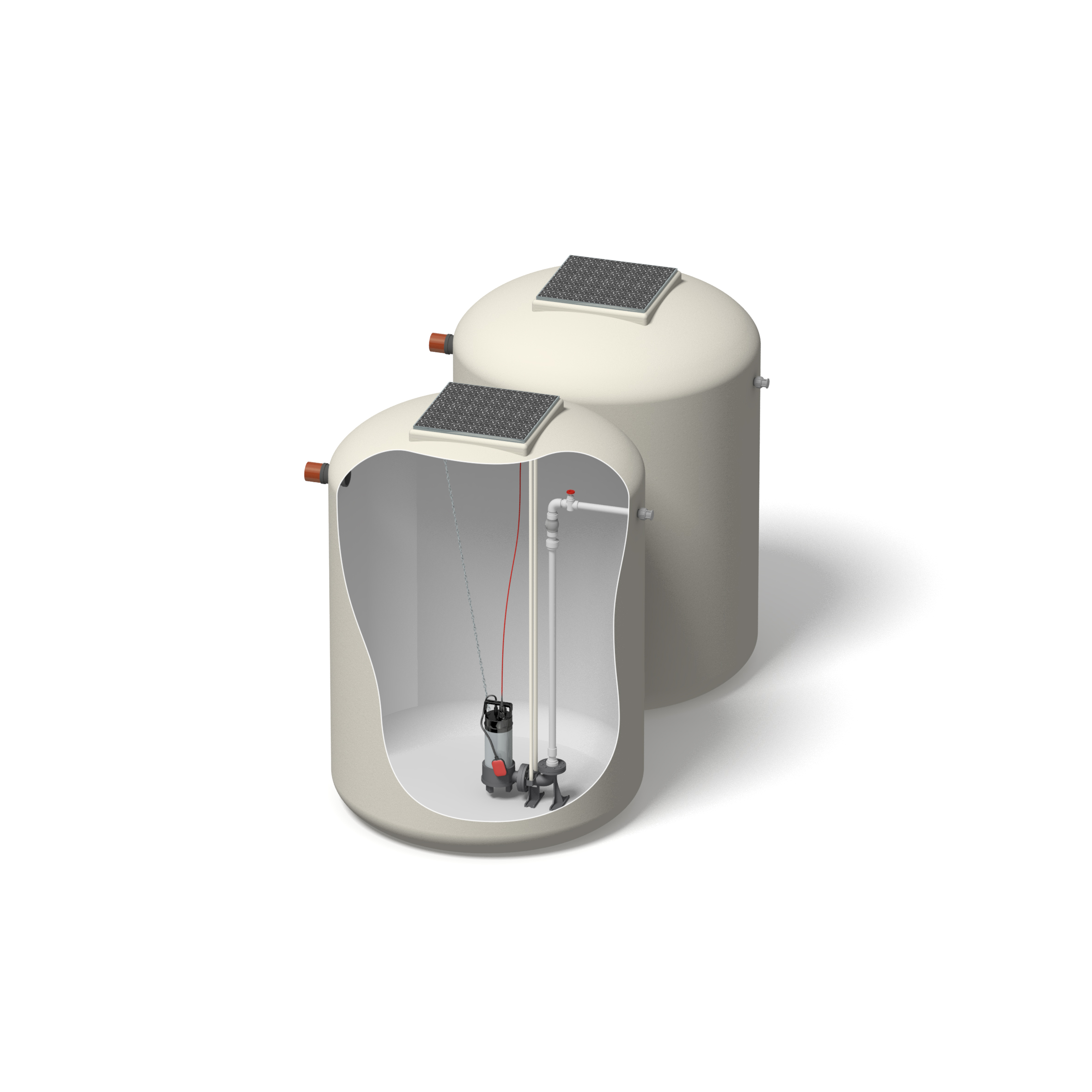

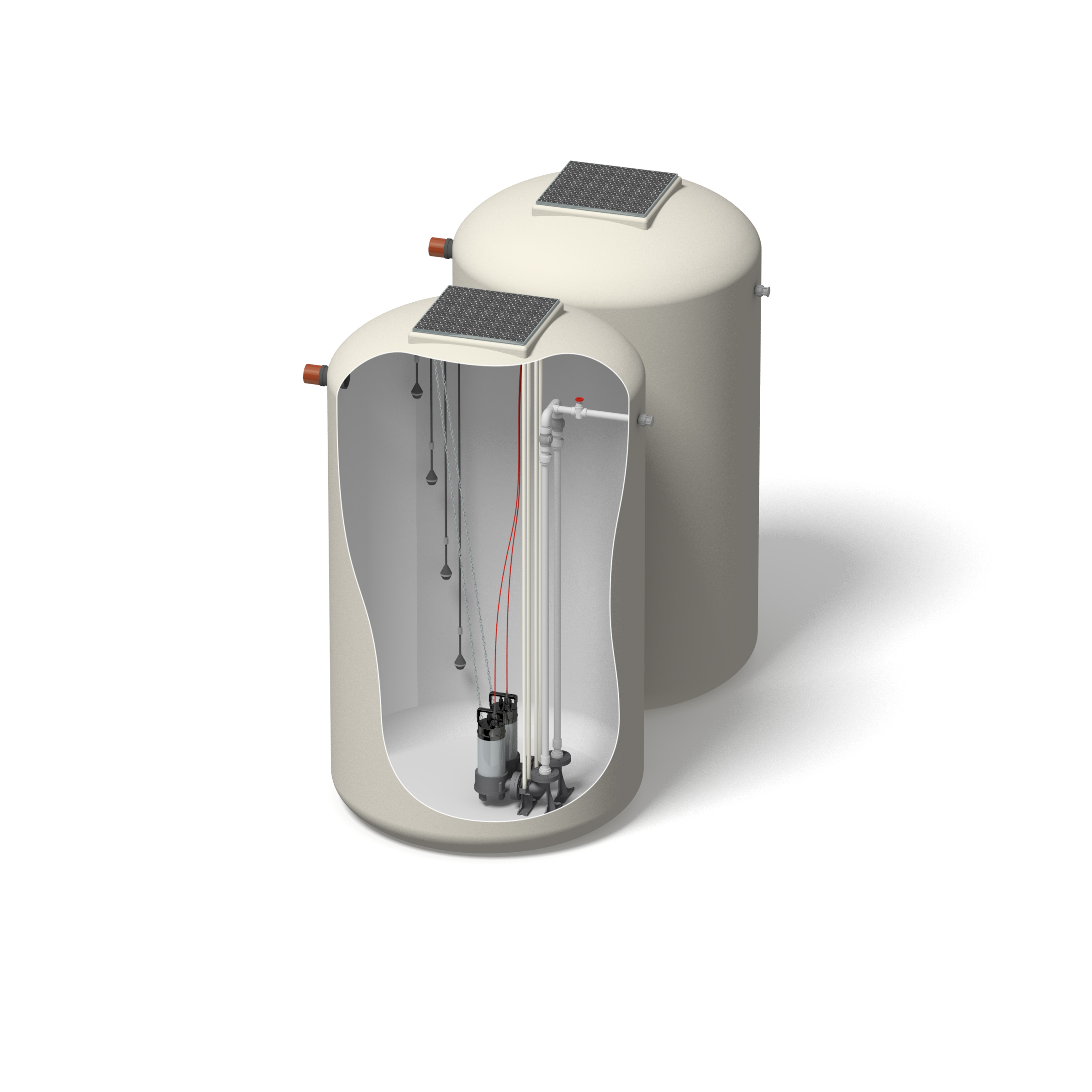

Footer note: Tank configuration and components shown for illustration purposes
Additional information
| Size | 1500×2000 SP comp, 1500×2000 TP comp, 1500×2500 SP comp, 1500×2500 TP comp, 1500×3000 SP comp, 1500×3000 TP comp |
|---|
